Product Name: Wit-Color large format digital printing machine Flex Banner, SAV, Vinyl, Back-Lit printer Ultra Star 3302 with 2 pcs Star Fire 10pl printhead

Product Details:
Model:
Ultra Star 3302
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai Port
Payment Terms:
L/C ,T/T,Other
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per Quarter
Delivery Time:
Within 10 working Days after Full Payment Received
Packaging:
Standard Plywood Package for Export (L*W*H): 4.92*1.13*1.76 G.W./N.W.: 890KG/590KG

Detailed Product Description:


Quick Details


  • Type: Inkjet Printer
  • Condition: New
  • Plate Type: Roll to Roll Vacuum  Plate
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: WIT-COLOR
  • Model Number: Ultra Star 3302
  • Usage: OUTDOOR PRINTER, Roll to Roll advertising mertrial, flex banner, vinyl, Mesh cloth, canvas,
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 220V
  • Gross Power: 5000W
  • Dimensions(L*W*H): 4.92*1.13*1.76
  • G.W./N.W.: 1010KG/770KG
  • Certification: ISO9001, CE,SGS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Print Head & Quantity: Spectra StarFire 1024 4 print heads
  • Speed: 2heads 2 pass 100 sqm/h
  • Color: Cyan,Magenta,Yellow,Black, LC, LM
  • Media width: 3.2m
  • Media Heating: Per & Post Media heating
  • RIP: Maintop / Ultraprint / Photoprint (optional)






Packaging & Delivery

Packaging Details: Standard Plywood Package for Export (L*W*H): 4.92*1.13*1.13m
Delivery Detail: Within 20 Working Days after Full Payment Received
Product Description

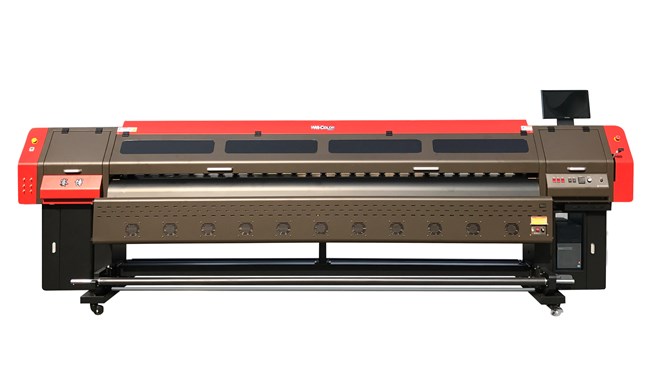

 Frontage

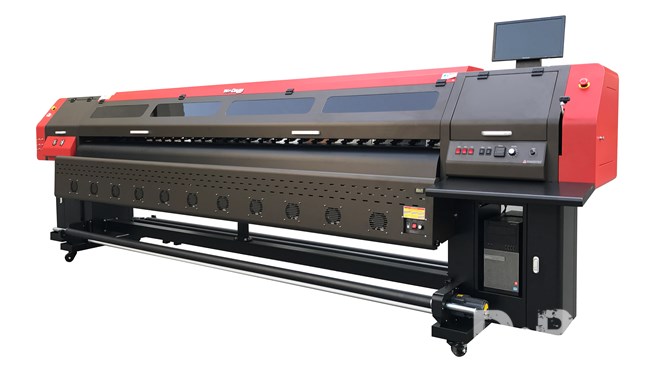

Left side

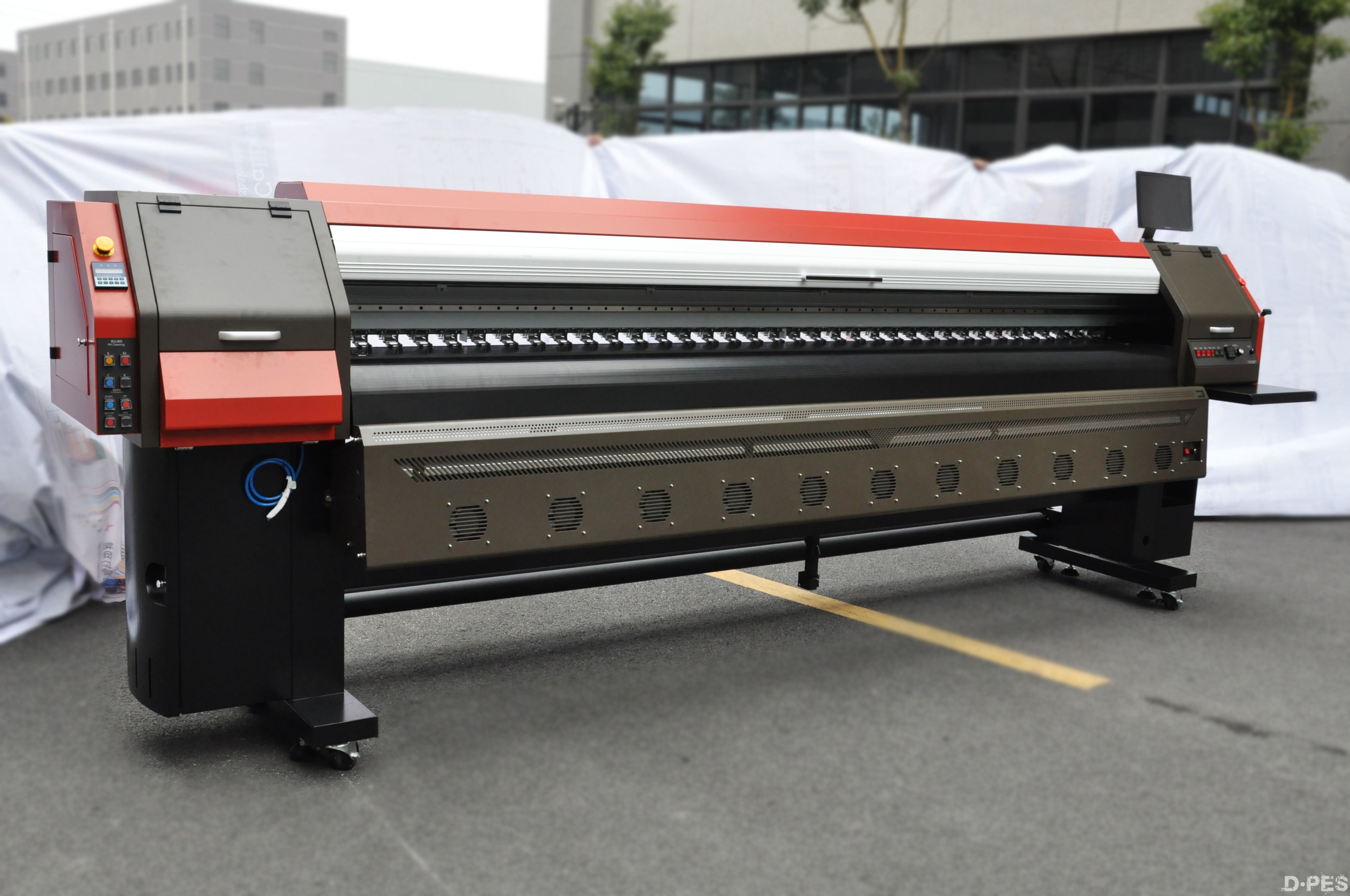

Right side

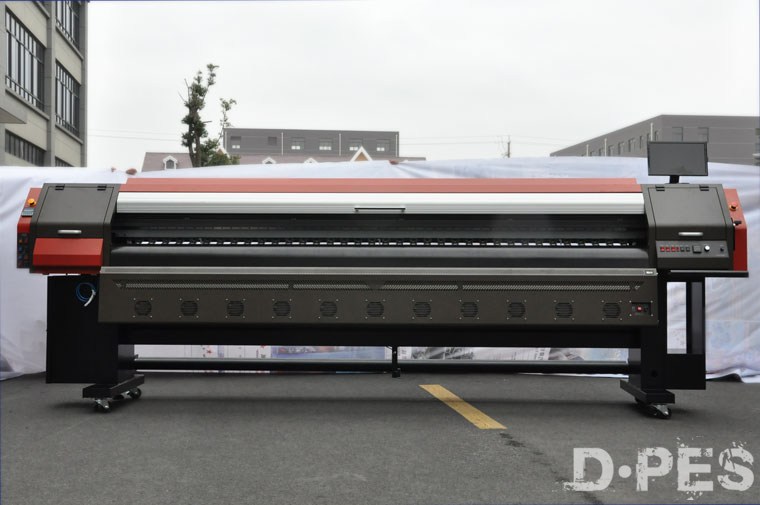

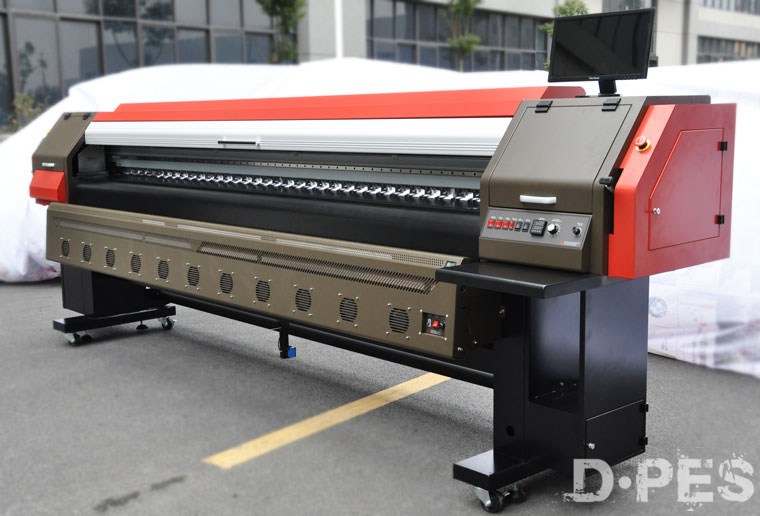

ULTRA STAR 3302 Solvent Printer

 Model

 Ultra Star 3302

 Resolution  720 X 800 dpi
 Printhead  Spectra star fire 1024 - 2 pcs
 Printing Width  3.2m
 Speed  High Resolution 50m2 /h (4pass 2 heads ) (720*800dpi,10pl)
 Production Mode 70m2 /h (3pass 2 heads ) (720*600dpi,10pl)
 Draft Mode 100m2/h (2pass 2 heads) (720*400dpi, 10pl)
 Color  C.M.Y.K.LC.LM
 Media  Media Width  3.3m Max
 Media Handling  Roll to Roll handling
 Media Types  Vinyl,Flex Banner PP Paper, Mesh Cloth, Advertising banner,
 Ink High Density Solvent ink.
 Image Data Format  TIFF,JPG,EPS,PDF
 RIP  Photoprint / Maintop
 Control Station  Windows /XP Workstation
 Packing Size  L/W/H: 4.90x1.13x1.13m
 G.W/N.W  830KG/590KG



Features:



1. High Speed:

The speed of 2 pcs StarFire 1024 heads' could be around 100 sqm/h, it's much higher than other high-speed

printers' 70sqm/h.Then time was saved, so the production and management costs were saved

also, This will satisfy customers and delight employees also.



2. Color & Resolution

With 10pl and 25pl optional StarFire printhead & Wit-Color original customised high density and faster-drying ink &

Wit-Color advanced ICC managerment system, the color saturation and resolution of Ultra Star 3302 is the highest

among all solvent printes.

2pass:720*400dpi.(ink drop size 10PL) speed: 100sqm/h

3pass:720*600dpi.(ink drop size 10PL) speed: 80sqm/h

4pass:720*800dpi.(ink drop size 10PL) speed: 60sqm/h

6pass:720*600dpi (ink drop size 10PL) speed: 50sqm/h

8pass:720*800dpi (ink drop size 10PL) speed: 40sqm/h

3. Fast-frying

High speed solvent printer requests fast image drying. Wit-Color solved the drying problem completely by

Wit-Color unique drying system and Wit-Color original customised faster-drying and high density ink..



4. Low Production Cost

 Wit-Color StarFire 1024 printer adopted continuous ink recirculation technology and equipped with original high

 density ink, it can print over 8 hours continuously with 40% less ink consumption.



5. Long Using Life

StarFire 1024 printhead adopted parts removable and replanceable technology. Allparts are repairable, and the

ink system is replaceable. the printhead's cost is reduced tremendously.


6.Low labor cost:

 1 unite Ultra Star printer is equivalent to 3 or 5 or more units general solvent printers, then less

 space occupation and much labor saving.



why choose us

Why Choose Us?

1.We are professional in digital printer, printing inks, and spare parts of printers.



2.We have professional engineers who have more than fifteen years experience to help you

   solve all kinds of questions.



3.We have good aftersale service, one year warranty, and deliver with good package and fast speed.



4.If you have any problems, our engineers can service oversea, and help you solve your questions.



5.We have a big market and a lot of customers all over the world.



6.Our annual sales are large, because we do it well.



MOQ:  1
Package:  Standard Plywood Package for Export
Delivery Terms:  EXW
Delivery Times:  Within 20 working days after 100% payment was received
Payment Type:  T/T
Supply Ability:  500 sets/mounth
Port:  Shanghai
After sales Service Provided:  1. Telephone or online Skype,WhatApp, Email, Wechat,etc
2.Engineers available to service machinery overseas

Certifications



Recruitment agency

To be WIT-COLOR Agent, you can get:

Market Protection + Competitive Price + Technical Support + Exhibition Support +PerformanceReward

=Success!



If you want to be our agent, please contact with us for further negotiation.





Company Information



Business Type:   Manufactory;
Location:   Shanghai, China;
Establishment:   Since 2001;
Factory Area covered:   30000 sqm;
Company Certifications:   ISO 9001, CE;







WIT-Color is one of the most professional digital printing equipment manufacturers in China for over 15 years.

With independent R&D (Research And Development) center and specialized in Solvent printers withSpectra

StarFire1024 print heads, LED UV Flatbed and Roll to Roll printers with Ricoh print heads, Ecosolvent printers

with Epson print heads, Textile printers and all types inks.



There will be at least one new model launched in Wit-Color every year, now we has more than 50 series; 100

model machines, our products are still in constant innovation.

Main products:



 FUJIFILM DIMATIX SPECTRA

StarFire 1024 (25/10pl)



 RICOH

GEN 5, GEN4



 XAAR

XAAR-PROTON(35pl)  XAAR-600 (60pl)



 EPSON

Epson DX7, Epson DX5



 Product Line

Solvent Printers, Eco-Solvent Printers, LED UV Flatbed Printer,

LED UV Roll to Roll Printers, Textile Printers and Inks.
