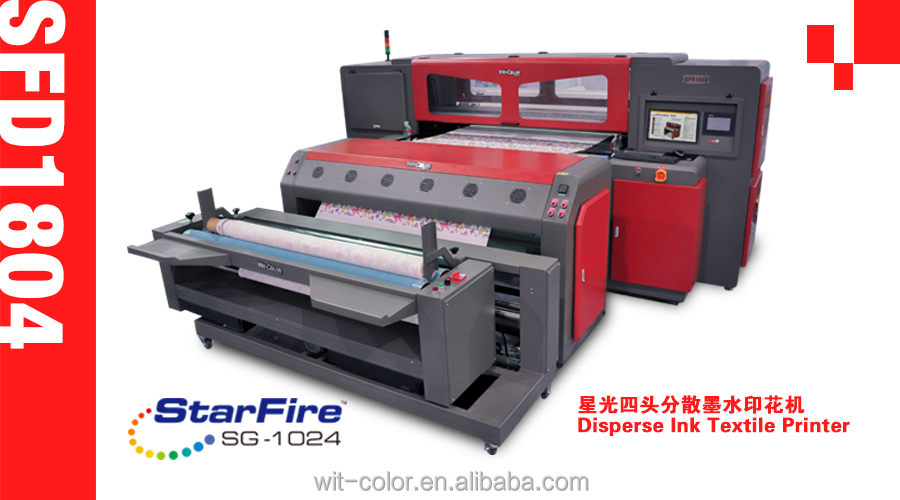

Product Name:shangai wit-color SFP 1804 / 1808 direct injet textile printer machine adopts 4 or 8 pcs StarFire printerhead use disperse ink

Product Details:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 4000.00-120000.00 /
Shipping Terms:
Shippment Port:
Shanghai Port
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets per Month
Delivery Time:
within 20 working days after 100% payment was received
Standard Plywood Package for Export L/W/H Printer: 3.95 x 2.30 x1.82m G.W./ N.W.: 1800kg / 1450kg

Detailed Product Description:

Quick Details

  • Type: Digital Printer
  • Condition: New
  • Plate Type: digital inkjet printer
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Wit-Color
  • Model Number: Textile printer SFP1804 / 1808
  • Usage: Suitable for Cotton, Flex, Silk, Wool, Nylon, Polyester Fabrics, etc.
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 220v
  • Gross Power: 3600w
  • Dimensions(L*W*H): 3.95 x 2.30 x1.82m
  • Packaging & Delivery

  • Weight: G.W. / N.W.: 1800kg/1450kg
  • Certification: CE; ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Printhead: 4 or 8 pcs StarFire 1024 10pl printhead
  • Speed: 8 heads 3 pass 100 sqm/h
  • INK Type: Disperse ink
  • Media Width: 1.8m ( 6 feet )
  • Ink Color: CMYK; LC; LM; Grey; Blue; Red; Orange; ect.
  • Media Type: Suitable for Cotton, Flex, Silk, Wool, Nylon, Polyester Fabrics, etc.
  • Image Format: TIFF, JPG, EPS, PDF
  • RIP Software: Maintop / Photoprint ( Optional )
  • L/W/H Printer: 3.95 x 2.30 x1.82m

  • G.W./ N.W.: 1800kg / 1450kg

    Packaging Details:

    Standard Plywood Package for Export L/W/H Printer: 3.95 x 2.30 x1.82m  G.W./ N.W.: 1800kg / 1450kg
    Delivery Detail: Within 20 working days after 100% payment was received

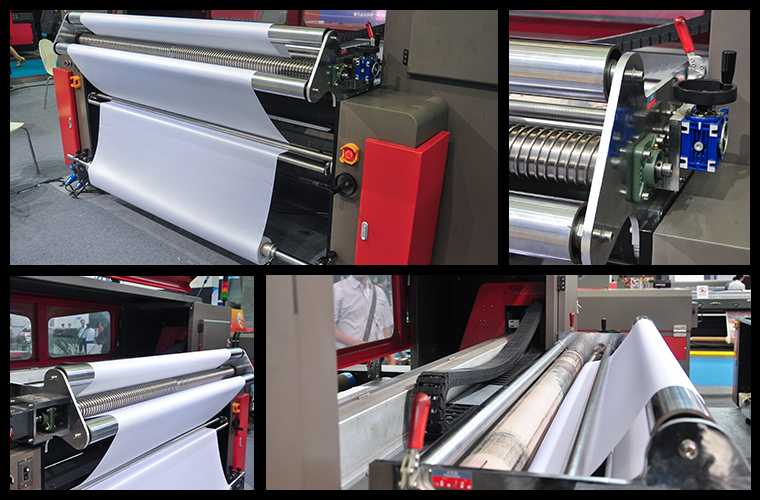

  Auto-Edging Take Up System


Auto belt correcting system



Printer Model                     SFD1804/1808
Print Head    P.H. Model    StarFire 1024 10PL
P.H.Height Adjustable
Printing Width 1.8m ( 5.9ft )
Printing Speed Printing Mode 4H 8H
1Pass N/A 310sqm/h
2Pass 160 sqm/h 160 sqm/h
3Pass 110sqm/h 110sqm/h
4Pass 85 sqm/h 85 sqm/h
Ink Type  Reactive, Acid, Pigment, Disperse Ink
Ink Color

 CMYK, LC,LM,Organge,Grey,Blue,Red, Fluorescent Red,

 Fluorescent Yellow.

Media Media width  1.8m
Media Processing  1.8m
Media Heating  Infrared heating ( Optional )
Media Type

 Suitable for Cotton, Flex, Silk, Wool, Nylon,

 Polyester Fabrics, etc.

Image Format  TIFF, JPG, EPS, PDF
RIP Software  Maintop / Photoprint ( Optional )
Interface  PCI LVDS(Windows 2000 / NT / XP etc.)
Operating System  Windows XP / Win7 Workstation
Power Supply  AC220V , 50HZ±10%, UPS is required
Power  Printer:3600W             Tunnel Oven:25000W
PC Configuration

 System: Windows XP SP2 (English Version) / Windows 7

 (Professional Version)
 CPU: Intel Dual Core i5
 RAM: KST  4GB
 Hard Disk: WD 500G
 Hard Disk Format: NTFS  VGA Card: SDC ATI 1G
 CD Rom: DVD Recordable

Temperature /Humidity Temperature 20-30, Humidity 60-70%
Packing Size  L/W/H  Printer : 3.95 x  2.30 x1.82m;
 Auto-Edging Take Up System:2.5x1.12x1.02m;
 Heating system: 2.53x1.00x1.35m
G.W./ N.W.  Printer: 1800kg / 1450kg;
 Auto-Edging Take Up System:340kg/240kg;
 Heating system: 300kg/200kg

Remark: The data is subject to change without prior notice.

The speed will be varied due to different PC settings.


why choose us

Why Choose Us?

1.We are professional in digital printer, printing inks, and spare parts of printers.


2.We have professional engineers who have more than fifteen years experience to help you solve

   all kinds of questions.


3.We have good aftersale service, one year warranty, and deliver with good package and fast speed.


4.If you have any problems, our engineers can service oversea, and help you solve your questions.


5.We have a big market and a lot of customers all over the world.


6.Our annual sales are large, because we do it well.


Ttade Items



MOQ:  1
Package:  Standard Plywood Package for Export
Delivery Terms:  EXW
Delivery Times:  Within 20 working days after 100% payment was received
Payment Type:  T/T
Supply Ability:  500 sits/mounth
Port:  Shanghai
After sales Service Provided:  1. Telephone or online skype, email, wechat,etc
2. Engineers available to service machinery overseas


Recruitment agency

To be WIT-COLOR Agent, you can get:

Market Protection + Competitive Price + Technical Support + Exhibition Support +PerformanceReward



If you want to be our agent, please contact with us for further negotiation.

Company Information


Business Type:   Manufactory;
Location:   Shanghai, China;
Establishment:   Since 2001;
Factory Area covered:   30000 sqm;
Company Certifications:   ISO 9001, CE;




WIT-Color is one of the most professional digital printing equipment manufacturers in China for over 15 years.

With independent R&D (Research And Development) center and specialized in Solvent printers withSpectra

StarFire1024 print heads, LED UV Flatbed and Roll to Roll printers with Ricoh print heads, Ecosolvent printers

with Epson print heads, Textile printers and all types inks.


There will be at least one new model launched in Wit-Color every year, now we has more than 50 series; 100

model machines, our products are still in constant innovation.

Main products:



StarFire 1024 (25/10pl)






XAAR-PROTON(35pl)  XAAR-600 (60pl)



Epson DX7, Epson DX5


 Product Line

Solvent Printers, Eco-Solvent Printers, LED UV Flatbed Printer,

LED UV Roll to Roll Printers, Textile Printers and Inks.
