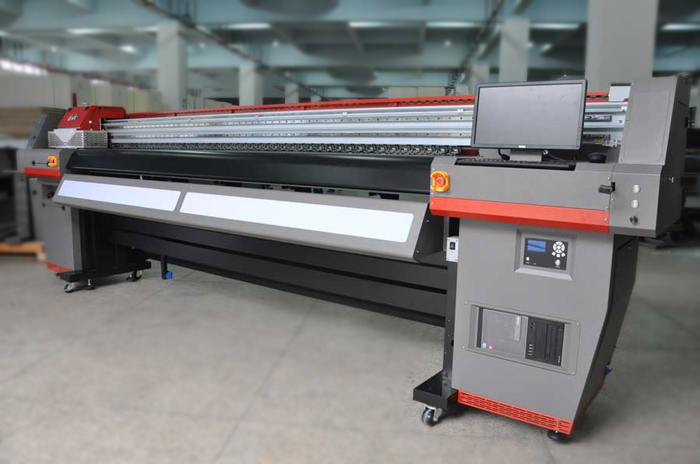

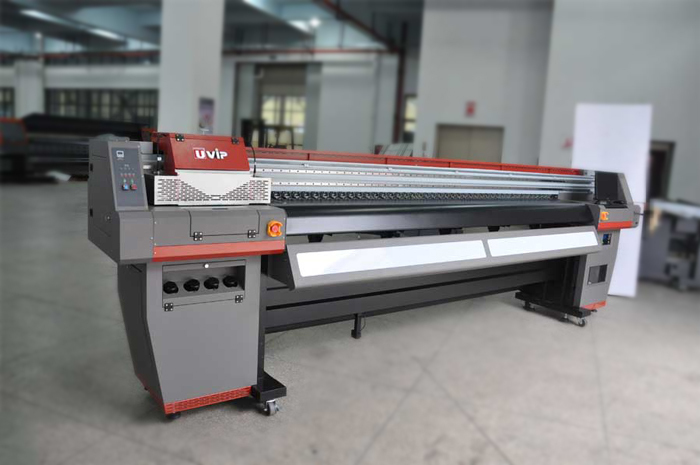

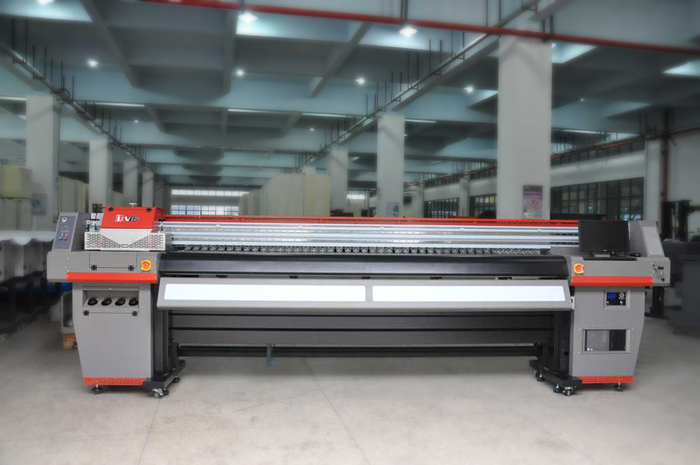

Product Name:Large format solvent printer on RICOH GEN5 print heads 3.2 m wide LED UV UVIP 5R3304

Product Details:
Model:
LED UVIP 5R3304
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 4000.00-55000.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai Port
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per Month
Delivery Time:
Within 20 working days after 100% payment was received
Packaging:
Standard Plywood Package for Export Package Size: 5.20 * 1.20 * 1.65 m G.W.: 600kg

Detailed Product Description:

Quick Details

  • Type: Digital Printer, Inkjet Printer
  • Condition: New
  • Plate Type: Roll to Roll
  • Place of Origin: Shanghai China (Mainland)
  • Brand Name: Wit-Color
  • Model Number: UVIP 5R3304
  • Usage: Advertising materials, such as backlit-flex, film, soft film, pp, wall cloth, wall paper
  • Automatic Grade: Automatic
  • Color & Page: Multicolor (MAX 7 colors and vanish)
  • Voltage: AC220V
  • Gross Power: 1100w
  • Dimensions(L*W*H): 5.20 * 1.20 * 1.65m
  • Weight: 600kg
  • Certification: CE, ISO9001
  • After-sales Service Provided: Skype, email, hot-line and door to door service.
  • Printing Speed: 8pass 20sqm/h, 16pass 10sqm/h
  • INK: original LED UV INK
  • Media Width: 3.2 m ( 10.50 ft )
  • Media Drying:cold LED UV lamp
  • RIP Software: MainTop / Photoprint ( optional )

Packaging & Delivery

Packaging Details: Standard Plywood Package for Export Package Size: 5.20 * 1.20 * 1.65 m G.W.: 600kg
Delivery Detail: Within 20 working days after 100% payment was received













UVIP 5R3304 with ricoh gen4 or gen 5 printheads, 8 pass model about 40 sqm/h
Model:   UVIP 5R3304
Print head:   Ricoh gen4  / gen5;
Printing width:   3.3m
Printing Speed:  8 pass 20sqm/h; 16 pass 10 sqm/h;
Lamp:   COLD LED UV;
Color model:   CMYK / CMYK+LC+LM / CMYK+LC+LM+W/CMYK+CMYK
Media Processing:   Roll to Roll + Auto Roll Up
Media Heating:   Pre & Post-Media Heating
Media Types:

All types indoor & outdoor advertising materials,decoration materials and textile

 such as backlit flex, film, soft film, wall cloth; wall PP, vinyl, leather, Canvas and other medias.

Image Format:   TIFF, JPG, EPS,PDF;
RIP Softer:   Photoprint / ONYX(Optional);
Operating System:   Windows 7 / windows xp Workstation;
Power Supply:   AC 220V;
Power:   2700w;
Packing Size:   5.2 x 1.02 x 1.65m
G.W / N.W:   800KG / 600 KG;
Certification:   CE, ISO;





  Two LED cold light illuminators largely prolong the using life and it is more environment-friendly and no radiation, compared with mercury lamp. a feature of higher quality, lower power consumption

and longer using life.



  Double AC servo control system ensured smooth carriage motion and stable printing.



 With intelligent and personalized RIP software, different overlapped image

could be output.Even, each image in the page could be color corrected separately and output as a whole, which makesdaily color correction more easily and improves

the efficiency largely.



 Intelligent automatic lifting carriage keeps the same height above different panel.

No need to correct, it is convenient to print only with one key.



 Vaccum motor can change sucking power to puffing power, forming air layer to take off

media easily.



  Adjust software ,The printer can print with Dual 4 colors, 5 colors or both white color and varnish. It can

also realize the different printing mode of color-white, white-color, or color-white-color



Why Choose Us?

1.We are professional in digital printer, printing inks, and spare parts of printers.



2.We have professional engineers who have more than fifteen years experience to help you solve

   all kinds of questions.



3.We have good aftersale service, one year warranty, and deliver with good package and fast speed.



4.If you have any problems, our engineers can service oversea, and help you solve your questions.



5.We have a big market and a lot of customers all over the world.



6.Our annual sales are large, because we do it well.



MOQ:   1
Package:   Standard Plywood Package for Export
Delivery Terms:   EXW
Delivery Times:   Within 20 working days after 100% payment was received
Payment Type:   T/T
Supply Ability:   500 sits/mounth
Port:   Shanghai
After sales Service Provided:   1. Telephone or online skype, email, wechat,etc
 2.Engineers available to service machinery overseas
